Series image. Check the exact part number.Littelfuse
Littelfuse 59025-030
Reed switche, black, built-in mounting, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, 59025-030
Manufacturer part number: 59025-030
Black by Littelfuse. Manufacturer part number 59025-030.
€12.56
Excl. VAT / pc
422 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Littelfuse |
|---|---|
| Part number | 59025-030 |
| Condition | New |
| Product type | reed sensor |
| Version | black |
| Latching switching function | 1 Form C (NO/NC) |
| Breaking capacity | 5 W |
| Switching Voltage (DC) | 175 V |
| switching current | 0.25 A |
| Contact resistance | 200 mΩ |
| Detecting distance | 4.5-7 mm |
| Assembly | built-in mounting |
| Connection | stranded wires |
| Degree of protection (IP) | IP67 |

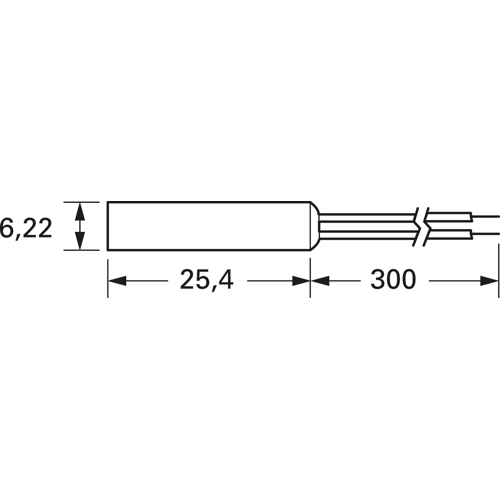

| diameter | 6.22 mm |
| Length | 25.4 mm |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
